當前位置：首頁 » 歐美晶振 » AbraconCrystal » ABLS3-24.000MHZ-D4YF-T/HC49/US/±30ppm/18pF/24MHz/晶振詳情

prevnext

ABLS3-24.000MHZ-D4YF-T/HC49/US/±30ppm/18pF/24MHz/晶振詳情

頻率：24.000MHZ

尺寸：11.4x4.7x2.5/2.6mm

ABLS3-24.000MHZ-D4YF-T/HC49/US/±30ppm/18pF/24MHz晶振詳情，歐美進口晶振，Abracon艾博康晶振，型號為：ABLS3，編碼為：ABLS3-24.000MHZ-D4YF-T，是一款小體積晶振尺寸：11.4 x 4.7 x 2.5/2.6mm封裝，石英晶體諧振器，兩腳貼片晶振，無源晶振，石英晶體，無鉛環保晶振，HC49/US（AT49）低輪廓SMD微處理器晶體，適用于符合RoHS要求的回流低高度降至2.5/2.6mm緊密穩定性和擴展溫度選項，石英晶振應用于：計算機晶振，調制解調器，微處理器晶體，無線網絡晶振，藍牙模塊晶振，車載電子等應用。

訂購熱線：86-0755-27838351

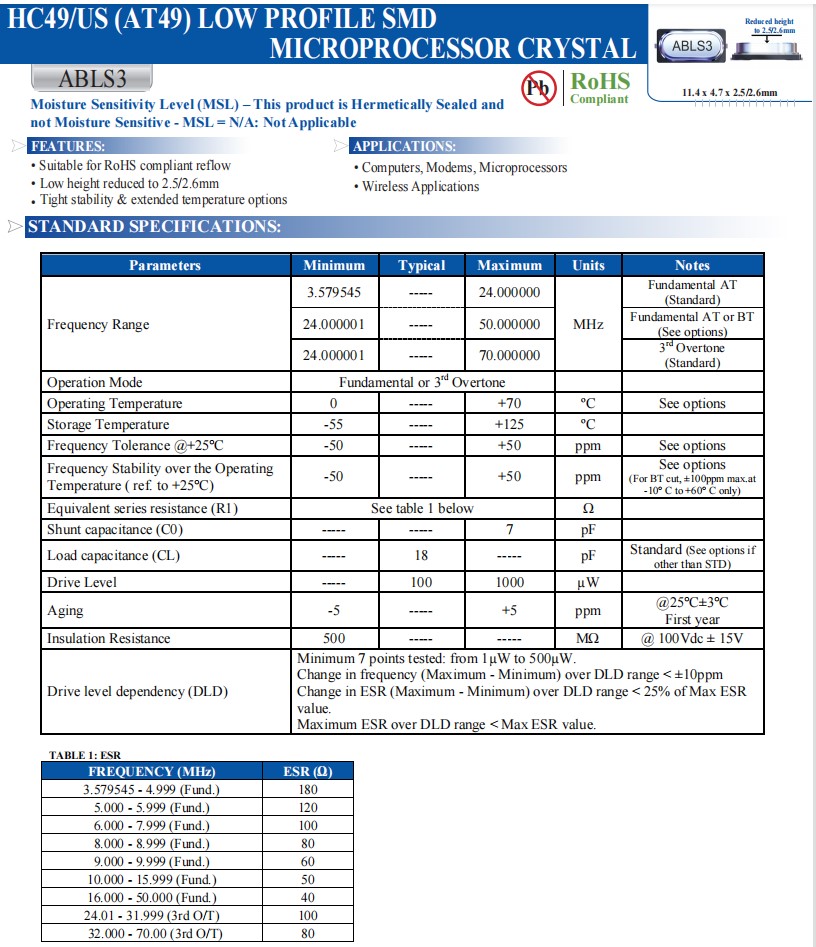

ABLS3-24.000MHZ-D4YF-T/HC49/US/±30ppm/18pF/24MHz晶振詳情，參數表

ABLS3	Minimum	Typical	Maximum	Units	Notes
Frequency Range	3.579545	-----	24		Fundamental AT (Standard)
	24.000001	-----	50	MHz	Fundamental AT or BT (See options)
	24.000001	-----	70		3rd Overtone (Standard)
Operation Mode	Fundamental or 3rd Overtone
Operating Temperature	0	-----	70	ºC	See options
Storage Temperature	-55	-----	125	ºC
Frequency Tolerance @+25°C	-50	-----	50	ppm	See options
Frequency Stability over the Operating Temperature ( ref. to +25°C)	-50		50	ppm	See options
		-----			(For BT cut, ±100ppm max.at
					- 10° C to +60° C only)
Equivalent series resistance (R1)	See table 1 below			?
Shunt capacitance (C0)	-----	-----	7	pF
Load capacitance (CL)	-----	18	-----	pF	Standard (See options if
Load capacitance (CL)	-----	18	-----	pF	other than STD)
Drive Level	-----	100	1000	µW
Aging	-5	-----	5	ppm	@25°C±3°C
Aging	-5	-----	5	ppm	First year
Insulation Resistance	500	-----	-----	M?	@ 100Vdc ± 15V
Drive level dependency (DLD)	Minimum 7 points tested: from 1µW to 500µW.
	Change in frequency (Maximum - Minimum) over DLD range < ±10ppm Change in ESR (Maximum - Minimum) over DLD range < 25% of Max ESR value.
	Maximum ESR over DLD range < Max ESR value.

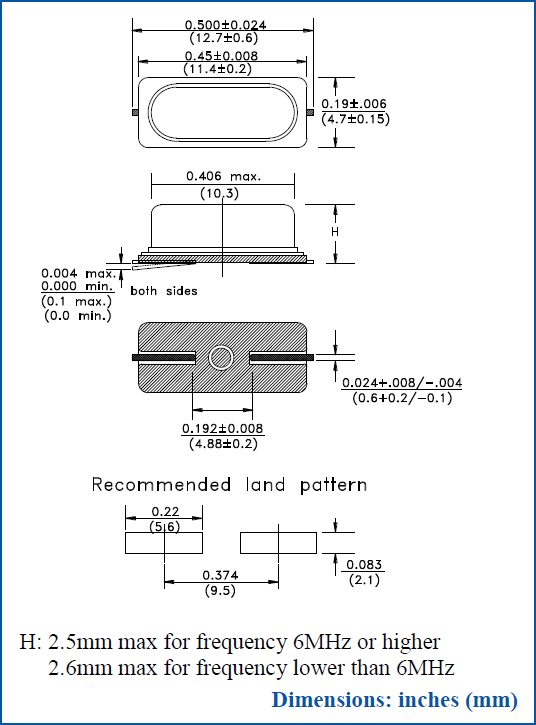

ABLS3-24.000MHZ-D4YF-T/HC49/US/±30ppm/18pF/24MHz晶振詳情，尺寸圖

ABLS3-24.000MHZ-D4YF-T/HC49/US/±30ppm/18pF/24MHz晶振詳情

FEATURES:
Suitable for RoHS compliant reflow
Low height reduced to 2.5/2.6mm
Tight stability & extended temperature options

APPLICATIONS:
Computers, Modems, Microprocessors
Wireless Applications
HC49/US (AT49) LOW PROFILE SMD MICROPROCESSOR CRYSTAL

石英貼片晶振	品牌	型號	頻率	包裝/封裝
ABLS3-8.000MHZ-D4Y-T	Abracon晶振	ABLS3	8MHz	HC49/US
ABLS3-16.000MHZ-D4Y-T	Abracon晶振	ABLS3	16MHz	HC49/US
ABLS3-3.6864MHZ-D4Y-T	Abracon晶振	ABLS3	3.6864MHz	HC49/US
ABLS3-15.000MHZ-D4Y-T	Abracon晶振	ABLS3	15MHz	HC49/US
ABLS3-4.9152MHZ-D4Y-T	Abracon晶振	ABLS3	4.9152MHz	HC49/US
ABLS3-9.8304MHZ-D4Y-T	Abracon晶振	ABLS3	9.8304MHz	HC49/US
ABLS3-4.000MHZ-D4Y-T	Abracon晶振	ABLS3	4MHz	HC49/US
ABLS3-4.096MHZ-D4Y-T	Abracon晶振	ABLS3	4.096MHz	HC49/US
ABLS3-6.000MHZ-D4Y-T	Abracon晶振	ABLS3	6MHz	HC49/US
ABLS3-24.000MHZ-D4YF-T	Abracon晶振	ABLS3	24MHz	HC49/US
ABLS3-19.6608MHZ-D4Y-T	Abracon晶振	ABLS3	19.6608MHz	HC49/US
ABLS3-7.3728MHZ-D4Y-T	Abracon晶振	ABLS3	7.3728MHz	HC49/US
ABLS3-22.1184MHZ-D4Y-T	Abracon晶振	ABLS3	22.1184MHz	HC49/US
ABLS3-13.000MHZ-D4Y-T	Abracon晶振	ABLS3	13MHz	HC49/US
ABLS3-8.192MHZ-D4Y-T	Abracon晶振	ABLS3	8.192MHz	HC49/US
ABLS3-29.4912MHZ-D4YF-T	Abracon晶振	ABLS3	29.4912MHz	HC49/US
ABLS3-27.000MHZ-D4YF-T	Abracon晶振	ABLS3	27MHz	HC49/US
ABLS3-10.000MHZ-D4Y-T	Abracon晶振	ABLS3	10MHz	HC49/US
ABLS3-14.7456MHZ-D4Y-T晶振編碼	Abracon晶振	ABLS3	14.7456MHz	HC49/US
ABLS3-14.31818MHZ-D4Y-T	Abracon晶振	ABLS3	14.31818MHz	HC49/US
ABLS3-24.576MHZ-D4YF-T	Abracon晶振	ABLS3	24.576MHz	HC49/US
ABLS3-20.000MHZ-D4Y-T	Abracon晶振	ABLS3	20MHz	HC49/US
ABLS3-18.432MHZ-D4Y-T	Abracon晶振	ABLS3	18.432MHz	HC49/US
ABLS3-5.000MHZ-D4Y-T	Abracon晶振	ABLS3	5MHz	HC49/US
ABLS3-3.579545MHZ-D4Y-T	Abracon晶振	ABLS3	3.579545MHz	HC49/US
ABLS3-16.384MHZ-D4Y-T	Abracon晶振	ABLS3	16.384MHz	HC49/US
ABLS3-12.288MHZ-D4Y-T	Abracon晶振	ABLS3	12.288MHz	HC49/US
ABLS3-11.0592MHZ-D4Y-T	Abracon晶振	ABLS3	11.0592MHz	HC49/US
ABLS3-26.000MHZ-D4YF-T	Abracon晶振	ABLS3	26MHz	HC49/US
ABLS3-25.000MHZ-D4YF-T	Abracon晶振	ABLS3	25MHz	HC49/US
ABLS3-12.000MHZ-D4Y-T	Abracon晶振	ABLS3	12MHz	HC49/US
ABLS3-6.144MHZ-D4Y-T	Abracon晶振	ABLS3	6.144MHz	HC49/US
ABLS3-30.000MHZ-D4YF-T	Abracon晶振	ABLS3	30MHz	HC49/US
