貼片諧振器CSM1Z-A5B2C5-60-8.0D18是微控制器和回流實踐的理想選擇，在這個以創新為主的行業里，創新型的石英貼片晶振產品，意味著更多的可能性，以及能夠被廣大用戶識別，這也是一種品牌的力量，Cardinal作為一家杰出的晶振品牌供應商，一直以來都積極培養自身的創新能力，經過幾十年的積累，現今有了爆發式的增長，開發系列具備創新的產品，憑借著出色的性能，精湛的工藝，得到業界公認為最佳創意之王。
| 歐美晶振原廠編碼 | 廠家 | 參數 | 型號 | 頻率 | 頻率穩定度 | 工作溫度 |
| CSM1Z-A0B2C3-50-28.63636D18 | Cardinal晶振 | CRYSTAL 28.63636MHZ 18PF SMD | CSM1 | 28.63636MHz | ±50ppm | -10°C ~ 60°C |
| CSM1Z-A5B2C3-60-9.216D18 | Cardinal晶振 | CRYSTAL 9.2160MHZ 18PF SMD | CSM1 | 9.216MHz | ±50ppm | -20°C ~ 70°C |
| CSM1Z-A5B2C3-120-6.0D18 | Cardinal晶振 | CRYSTAL 6.0000MHZ 18PF SMD | CSM1 | 6MHz | ±50ppm | -20°C ~ 70°C |
| CSM4Z-A2B3C3-40-26.0D18-F | Cardinal晶振 | CRYSTAL 26.0000MHZ 18PF SMD | CSM4 | 26MHz | ±30ppm | -40°C ~ 85°C |
| CSM1Z-A5B2C5-120-7.3728D18 | Cardinal晶振 | CRYSTAL 7.3728MHZ 18PF SMD | CSM1 | 7.3728MHz | ±50ppm | -20°C ~ 70°C |
| CSM1Z-A5B2C3-40-18.0D18 | Cardinal晶振 | CRYSTAL 18.0000MHZ 18PF SMD | CSM1 | 18MHz | ±50ppm | -20°C ~ 70°C |
| CSM1Z-A0B2C3-50-24.0D18 | Cardinal晶振 | CRYSTAL 24.0000MHZ 18PF SMD | CSM1 | 24MHz | ±50ppm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-80-10.0D18 | Cardinal晶振 | CRYSTAL 10.0000MHZ 18PF SMD | CSM1 | 10MHz | ±50ppm | -10°C ~ 60°C |
| CSM4Z-A2B3C3-180-4.0D18 | Cardinal晶振 | CRYSTAL 4.0000MHZ 18PF SMD | CSM4 | 4MHz | ±30ppm | -40°C ~ 85°C |
| CSM1Z-A5B2C5-150-4.9152D18 | Cardinal晶振 | CRYSTAL 4.9152MHZ 18PF SMD | CSM1 | 4.9152MHz | ±50ppm | -20°C ~ 70°C |
| CSM4Z-A2B3C3-60-9.8304D18 | Cardinal晶振 | CRYSTAL 9.8304MHZ 18PF SMD | CSM4 | 9.8304MHz | ±30ppm | -40°C ~ 85°C |
| CSM1-A1B2C3-70-14.7456D20 | Cardinal晶振 | CRYSTAL 14.7456MHZ 20PF SMD | CSM1 | 14.7456MHz | ±50ppm | -10°C ~ 70°C |
| CSM1-A5B2C5-180-3.579545D18 | Cardinal晶振 | CRYSTAL 3.579545MHZ 18PF SMD | CSM1 | 3.579545MHz | ±50ppm | -20°C ~ 70°C |
| CSM1Z-A5B2C3-40-12.0D18 | Cardinal晶振 | CRYSTAL 12.0000MHZ 18PF SMD | CSM1 | 12MHz | ±50ppm | -20°C ~ 70°C |
| CSM1Z-A5B2C5-150-5.0D18 | Cardinal晶振 | CRYSTAL 5.0000MHZ 18PF SMD | CSM1 | 5MHz | ±50ppm | -20°C ~ 70°C |
| CSM4Z-A2B3C3-40-11.0592D18 | Cardinal晶振 | CRYSTAL 11.0592MHZ 18PF SMD | CSM4 | 11.0592MHz | ±30ppm | -40°C ~ 85°C |
| CSM1Z-A0B2C3-80-12.0D18 | Cardinal晶振 | CRYSTAL 12.0000MHZ 18PF SMD | CSM1 | 12MHz | ±50ppm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-80-11.0592D18 | Cardinal晶振 | CRYSTAL 11.0592MHZ 18PF SMD | CSM1 | 11.0592MHz | ±50ppm | -10°C ~ 60°C |
| CSM1Z-A5B2C5-60-8.0D18 | Cardinal晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CSM1 | 8MHz | ±50ppm | -20°C ~ 70°C |
| CSM1Z-A5B2C3-30-25.0D20 | Cardinal晶振 | CRYSTAL 25.0000MHZ 20PF SMD | CSM1 | 25MHz | ±50ppm | -20°C ~ 70°C |
| CSM1Z-A3B1C3-200-3.6864D18 | Cardinal晶振 | CRYSTAL 3.6864MHZ 18PF SMD | CSM1 | 3.6864MHz | ±100ppm | -55°C ~ 125°C |
| CSM1Z-A5B2C3-60-8.0D18 | Cardinal晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CSM1 | 8MHz | ±50ppm | -20°C ~ 70°C |
| CSM4Z-A2B3C3-40-16.0D18 | Cardinal晶振 | CRYSTAL 16.0000MHZ 18PF SMD | CSM4 | 16MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-60-7.3728D18 | Cardinal晶振 | CRYSTAL 7.3728MHZ 18PF SMD | CSM4 | 7.3728MHz | ±30ppm | -40°C ~ 85°C |
| CSM1Z-A5B2C3-40-13.0D18 | Cardinal晶振 | CRYSTAL 13.0000MHZ 18PF SMD | CSM1 | 13MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A5B2C5-40-27.0D18 | Cardinal晶振 | CRYSTAL 27.0000MHZ 18PF SMD | CX5 | 27MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A5B2C5-40-24.0D18 | Cardinal晶振 | CRYSTAL 24.0000MHZ 18PF SMD | CX5 | 24MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A5B2C5-40-24.576D18 | Cardinal晶振 | CRYSTAL 24.5760MHZ 18PF SMD | CX5 | 24.576MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A5B2C5-70-8.0D18 | Cardinal晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CX5 | 8MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A1B2C5-40-24.0D18 | Cardinal晶振 | CRYSTAL 24.0000MHZ 18PF SMD | CX5 | 24MHz | ±50ppm | -10°C ~ 70°C |
| CX5Z-A5B2C5-50-16.0D18 | Cardinal晶振 | CRYSTAL 16.0000MHZ 18PF SMD | CX5 | 16MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A0B2C5-50-16.0D18 | Cardinal晶振 | CRYSTAL 16.0000MHZ 18PF SMD | CX5 | 16MHz | ±50ppm | -10°C ~ 60°C |
| CX5Z-A2B2C5-40-10.0D18 | Cardinal晶振 | CRYSTAL 10.0000MHZ 18PF SMD | CX5 | 10MHz | ±50ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-1966080D18 | Cardinal晶振 | CRYSTAL 19.6608MHZ 18PF SMD | CX532 | 19.6608MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-33.0D18 | Cardinal晶振 | CRYSTAL 33.0000MHZ 18PF SMD | CX532 | 33MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-27.0D18 | Cardinal晶振 | CRYSTAL 27.0000MHZ 18PF SMD | CX532 | 27MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A5B3C5-70-20.0D18 | Cardinal晶振 | CRYSTAL 20.0000MHZ 18PF SMD | CX532 | 20MHz | ±30ppm | -20°C ~ 70°C |
| CX532Z-A2B3C5-70-14.7456D18 | Cardinal晶振 | CRYSTAL 17.7456MHZ 18PF SMD | CX532 | 14.7456MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A5B3C5-70-12.0D18 | Cardinal晶振 | CRYSTAL 12.0000MHZ 18PF SMD | CX532 | 12MHz | ±30ppm | -20°C ~ 70°C |
| CX532Z-A2B3C5-70-50.0D18 | Cardinal晶振 | CRYSTAL 50.0000MHZ 18PF SMD | CX532 | 50MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-30.0D18 | Cardinal晶振 | CRYSTAL 30.0000MHZ 18PF SMD | CX532 | 30MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A5B3C5-70-27.0D18 | Cardinal晶振 | CRYSTAL 27.0000MHZ 18PF SMD | CX532 | 27MHz | ±30ppm | -20°C ~ 70°C |
| CX532AZ-A5B2C5-70-25.0D18 | Cardinal晶振 | CRYSTAL 25.0000MHZ 18PF SMD | CX532 | 25MHz | ±50ppm | -20°C ~ 70°C |
| CX532Z-A5B3C5-70-25.0D18 | Cardinal晶振 | CRYSTAL 25.0000MHZ 18PF SMD | CX532 | 25MHz | ±30ppm | -20°C ~ 70°C |
| CX532Z-A2B3C5-70-20.0D18 | Cardinal晶振 | CRYSTAL 20.0000MHZ 18PF SMD | CX532 | 20MHz | ±30ppm | -40°C ~ 85°C |
| CX5Z-A2B2C5-70-8.0D18 | Cardinal晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CX5 | 8MHz | ±50ppm | -40°C ~ 85°C |
| CX5Z-A2B2C5-40-25D18 | Cardinal晶振 | CRYSTAL 25.0000MHZ 18PF SMD | CX5 | 25MHz | ±50ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-8.0D18 | Cardinal晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CX532 | 8MHz | ±30ppm | -40°C ~ 85°C |
| CSM1Z-A0B2C3-70-14.7456D18 | Cardinal晶振 | CRYSTAL 14.7456MHZ 18PF SMD | CSM1 | 14.7456MHz | ±50ppm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-50-17.734475D18 | Cardinal晶振 | CRYSTAL 17.734475MHZ 18PF SMD | CSM1 | 17.734475MHz | ±50ppm | -10°C ~ 60°C |
| CSM1Z-A1B2C3-200-3.6864D20 | Cardinal晶振 | CRYSTAL 3.6864MHZ 20PF SMD | CSM1 | 3.6864MHz | ±50ppm | -10°C ~ 70°C |
| CSM1Z-A0B2C3-50-18.432D18 | Cardinal晶振 | CRYSTAL 18.4320MHZ 18PF SMD | CSM1 | 18.432MHz | ±50ppm | -10°C ~ 60°C |
| CSM1Z-A5B2C3-40-16.0D18 | Cardinal晶振 | CRYSTAL 16.0000MHZ 18PF SMD | CSM1 | 16MHz | ±50ppm | -20°C ~ 70°C |
| CSM1Z-A0B2C3-200-3.579545D18 | Cardinal晶振 | CRYSTAL 3.579545MHZ 18PF SMD | CSM1 | 3.579545MHz | ±50ppm | -10°C ~ 70°C |
| CSM1Z-A0B2C3-50-20.0D18 | Cardinal晶振 | CRYSTAL 20.0000MHZ 18PF SMD | CSM1 | 20MHz | ±50ppm | -10°C ~ 60°C |
| CSM1Z-A5B2C5-150-4.0D18 | Cardinal晶振 | CRYSTAL 4.0000MHZ 18PF SMD | CSM1 | 4MHz | ±50ppm | -20°C ~ 70°C |

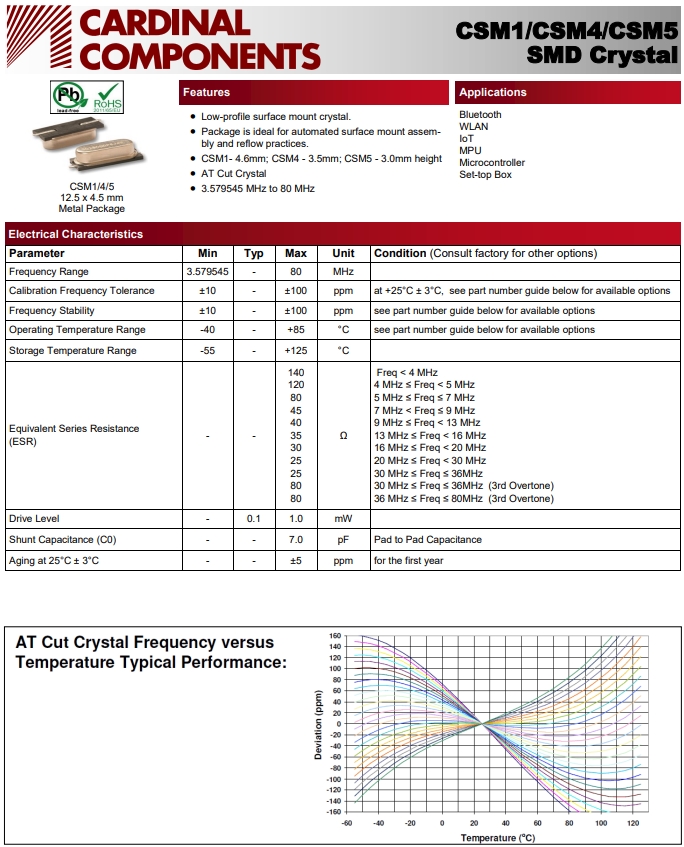

貼片諧振器CSM1Z-A5B2C5-60-8.0D18是微控制器和回流實踐的理想選擇，產品特點：低輪廓表面安裝石英晶體。包裝是自動化表面貼裝組裝和回流實踐的理想選擇。CSM1- 4.6mm;CSM4 - 3.5mm;CSM5 - 3.0mm高度，AT切割水晶，3.579545 MHz~80MHz.產品主要應用范圍：藍牙，無線局域網，物聯網，微控制器，單片機，機頂盒.
