KX-3T,1210mm,Geyer格耶晶振,SMD石英晶體,智能手機晶振

頻率：26.0~60.0MHz

尺寸：1.2x1.0mm

KX-3T,1210mm,Geyer格耶晶振,SMD石英晶體,智能手機晶振，丹麥進口晶振，Geyer晶振，格耶晶振，型號：KX-3T，頻率范圍為：26.0~60.0MHz，小體積晶振尺寸：1.2x1.0mm封裝，SMD晶振，四腳貼片晶振，石英晶振，無源晶振，石英晶體諧振器，無鉛環保晶振。工作溫度范圍：-40℃至+85℃。具有超小型，輕薄型，高精度，高性能，高品質，耐熱及耐環境特點。應用于：移動通訊設備，智能穿戴設備晶振，小型便捷式設備，手機晶振，平板電腦，無線網絡，藍牙模塊，汽車電子設備，醫療設備，安防設備，數碼電子等應用。

訂購熱線：86-0755-27838351

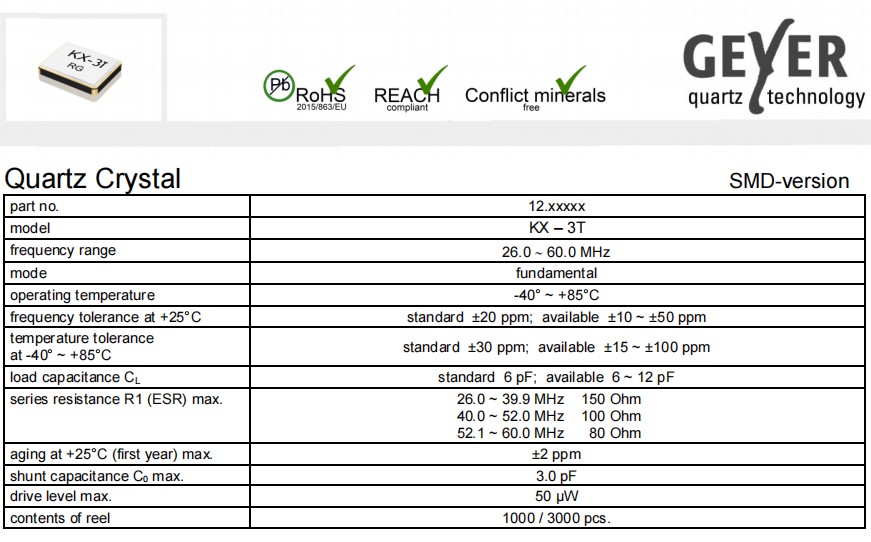

KX-3T,1210mm,Geyer格耶晶振,SMD石英晶體,智能手機晶振,參數表

part no.	12.xxxxx
model	KX - 3T
frequency range	26.0 ~ 60.0 MHz
mode	fundamental
operating temperature	-40° ~ +85°C
frequency tolerance at +25°C	standard ±20 ppm; available ±10 ~ ±50 ppm
temperature tolerance at -40° ~ +85°C	standard ±30 ppm; available ±15 ~ ±100 ppm
load capacitance CL	standard 6 pF; available 6 ~ 12 pF
series resistance R1 (ESR) max.	26.0 ~ 39.9 MHz 40.0 ~ 52.0 MHz 52.1 ~ 60.0 MHz	150 Ohm 100 Ohm 80 Ohm
aging at +25°C (first year) max.	±2 ppm
shunt capacitance C0 max.	3.0 pF
drive level max.	50 µW
contents of reel	1000 / 3000 pcs.

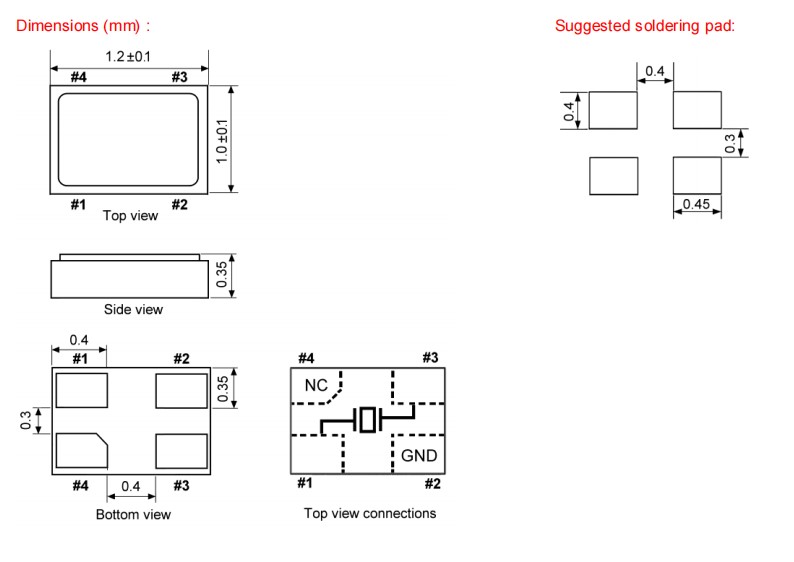

KX-3T,1210mm,Geyer格耶晶振,SMD石英晶體,智能手機晶振,尺寸圖

KX-3T,1210mm,Geyer格耶晶振,SMD石英晶體,智能手機晶振

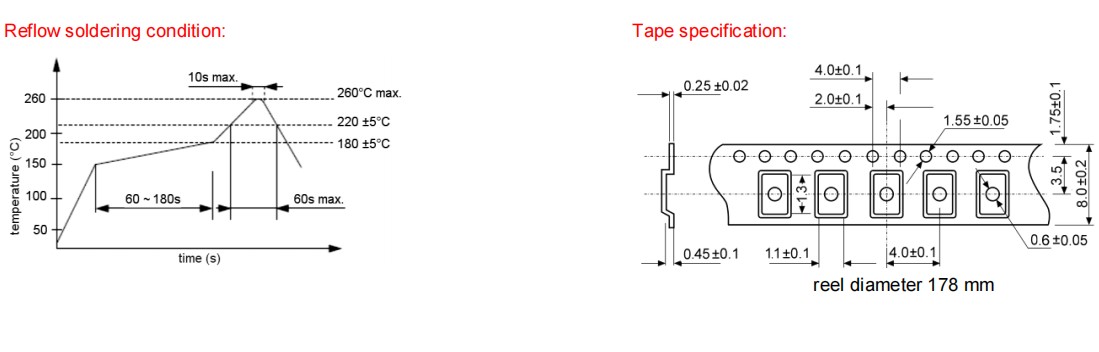

1210mm體積的晶振,可以說是目前小型數碼產品的福音,目前超小型的智能手機里面所應用的就是小型的石英晶振,該產品最適用于無線通訊系統,無線局域網,已實現低相位噪聲,低電壓,低消費電流和高穩定度,超小型,質量輕等產品特點,產品本身編帶包裝方式,可對應自動高速貼片機應用,以及高溫回流焊接（產品無鉛對應）,為無鉛產品.

編碼	晶振廠家	描述	型號	頻率	頻率溫度性
12.85536	Geyer格耶	CYSTAL 40.0MHZ 8PF SMD	KX-5T	40 MHz	±20ppm
12.84816	Geyer格耶	Crystal 25.0MHz 8pF SMD	KX-4	25 MHz	±50ppm
12.84805	Geyer格耶	Crystal 27.120MHz 8pF SMD	KX-4	27.12 MHz	±30ppm
12.86509	Geyer格耶	Cystal 48.0Mhz 10pF SMD	KX-6	48 MHz	±50ppm
12.84813	Geyer格耶	Crystal 27.120MHz 8pF SMD	KX-4	27.12 MHz	±15ppm
12.85515	Geyer格耶	CYSTAL 27.0MHZ 8PF SMD	KX-5	27 MHz	±50ppm
12.86544	Geyer格耶	Crystal 16.0Mhz 10pF SMD	KX-7E	24 MHz	±120ppm
12.85547	Geyer格耶	CYSTAL 26.0MHZ 8PF SMD	KX-5T	26 MHz	±20ppm
12.85562	Geyer格耶	CYSTAL 50.0MHZ 8PF SMD	KX-5T	50 MHz	±50ppm
12.86531	Geyer格耶	Cystal 16.0Mhz 10pF SMD	KX-6T	16 MHz	±100ppm
12.86512	Geyer格耶	Cystal 20.0Mhz 10pF SMD	KX-6	20 MHz	±50ppm
12.8655	Geyer格耶	Crystal 16.0Mhz 10pF SMD	KX-6E	16 MHz	±150ppm
12.86526	Geyer格耶	Cystal 26.0Mhz 10pF SMD	KX-6T	26 MHz	±20ppm
12.85521	Geyer格耶	CYSTAL 26.0MHZ 10PF SMD	KX-5T	26 MHz	±20ppm
12.86517	Geyer格耶	Cystal 24.0Mhz 10pF SMD	KX-6	24 MHz	±50ppm
12.84812	Geyer格耶	Crystal 25.0MHz 8pF SMD	KX-4	25 MHz	±50ppm
12.85519	Geyer格耶	CYSTAL 20.0MHZ 8PF SMD	KX-5T	20 MHz	±50ppm
12.85539	Geyer格耶	CYSTAL 40.0MHZ 8PF SMD	KX-5T	48 MHz	±20ppm
12.85517	Geyer格耶	CYSTAL 54.0MHZ 8PF SMD	KX-5T	54 MHz	±100ppm
12.85569	Geyer格耶	CYSTAL 27.120MHZ 8PF SMD	KX-5T	27.12 MHz	±15ppm
12.85538	Geyer格耶	CYSTAL 24.5760MHZ 8PF SMD	KX-5T	24.576 MHz	±100ppm
12.86533	Geyer格耶	Cystal 26.0Mhz 10pF SMD	KX-6T	26 MHz	±100ppm
12.8652	Geyer格耶	Cystal 27.0Mhz 10pF SMD	KX-6	27 MHz	±50ppm
12.86574	Geyer格耶	Crystal 27.0Mhz 8pF SMD	KX-6F	27 MHz	±150ppm
12.85541	Geyer格耶	CYSTAL 30.0MHZ 8PF SMD	KX-5	30 MHz	±30ppm
12.84818	石英晶振	Crystal 24.0MHz 8pF SMD	KX-4	24 MHz	±50ppm
12.86527	Geyer格耶	Cystal 20.0Mhz 10pF SMD	KX-6T	20 MHz	±15ppm
12.85534	Geyer格耶	CYSTAL 27.0MHZ 8PF SMD	KX-5T	27 MHz	±50ppm
12.86505	Geyer格耶	Cystal 26.0Mhz 10pF SMD	KX-6	26 MHz	±50ppm
12.84803	Geyer格耶	Crystal 26.0MHz 8pF SMD	KX-4	26 MHz	±20ppm
12.85518	Geyer格耶	CYSTAL 20.0MHZ 8PF SMD	KX-5E	20 MHz	±50ppm
12.86556	Geyer格耶	Crystal 40.0Mhz 8pF SMD	KX-6T	40 MHz	±20ppm
12.86511	Geyer格耶	Crystal 18.4320Mhz 10pF SMD	KX-6	18.432 MHz	±50ppm
12.86536	Geyer格耶	Crystal 14.318180Mhz 10pF SMD	KX-6	14.31818 MHz	±50ppm
12.8481	Geyer格耶	Crystal 48.0MHz 8pF SMD	KX-4	48 MHz	±50ppm
12.84814	Geyer格耶	Crystal 32.0MHz 8pF SMD	KX-4	32 MHz	±15ppm
12.8556	Geyer格耶	CYSTAL 16.0MHZ 8PF SMD	KX-5T	16 MHz	±30ppm
12.86561	Geyer格耶	Crystal 40.0Mhz 10pF SMD	KX-6T	40 MHz	±20ppm
12.86564	Geyer格耶	Crystal 14.318180Mhz 10pF SMD	KX-6T	14.31818 MHz	±100ppm
12.86592	Geyer格耶	Crystal 25.0Mhz SMD KX-6T 12pF,	KX-6T	25 MHz	±20ppm
12.87159	Geyer格耶	CRYSTAL 32.7680kHz 12.5pF SMD	KX-327NHT	32.768 kHz	-0.035ppm
12.87163	Geyer格耶	CRYSTAL 32.768KHZ 7PF SMD	KX-327RT	32.768 kHz	-0.036ppm
12.87151	Geyer格耶	CRYSTAL 32.7680kHz 9pF SMD	KX-327NHT	32.768 kHz	-0.035ppm
12.8717	Geyer格耶	CRYSTAL 32.7680KHZ 12.5PF SMD	KX-327FT	32.768 kHz	-
12.87148	Geyer格耶	CRYSTAL 32.7680KHZ 7PF SMD	KX-327NHT	32.768 kHz	-0.035ppm
12.8716	Geyer格耶	CYSTAL 32.7680KHZ 12.5PF SMD	KX-327RT	32.768 kHz	±20ppm
12.87143	Geyer格耶	CRYSTAL 32.768KHz 9pF SMD	KX-327NHT	32.768 kHz	-0.035ppm
12.84801	Geyer格耶	Crystal 26.0MHz 8pF SMD	KX-4	26 MHz	±50ppm
12.8718	Geyer格耶	Crystal 32.7680kHz 9pF SMD	KX-327NHF	32.768 kHz	-0.03ppm
12.87147	Geyer格耶	CRYSTAL 32.768KHz 7pF SMD	KX-327NHT	32.768 kHz	-
12.87081	Geyer格耶	CRYSTAL 32.768KHZ 6PF SMD	KX-327NHT	32.768 kHz	-0.035ppm
12.87149	Geyer格耶	CRYSTAL 32.7680KHZ 9PF SMD	KX-327NHT	32.768 kHz	-0.035ppm
12.87156	Geyer格耶	CRYSTAL 32.768KHz 12.5pF SMD	KX-327NHT	32.768 kHz	-0.035ppm
12.87154	Geyer格耶	CRYSTAL 32.768KHz 12.5pF SMD	KX-327NHT	32.768 kHz	-0.035ppm
12.87174	Geyer格耶	CRYSTAL 32.768KHz 7pF SMD	KX-327FT	32.768 kHz	-0.036ppm
12.8715	Geyer格耶	CRYSTAL 32.7680KHZ 12.5PF SMD	KX-327NHT	32.768 kHz	-0.035ppm
12.87181	Geyer格耶	CRYSTAL 32.7680KHZ 12.5PF SMD	KX-327NHF	32.768 kHz	-0.03ppm
12.85559	Geyer格耶	CYSTAL 40.0MHZ 8PF SMD	KX-5	40 MHz	±50ppm
